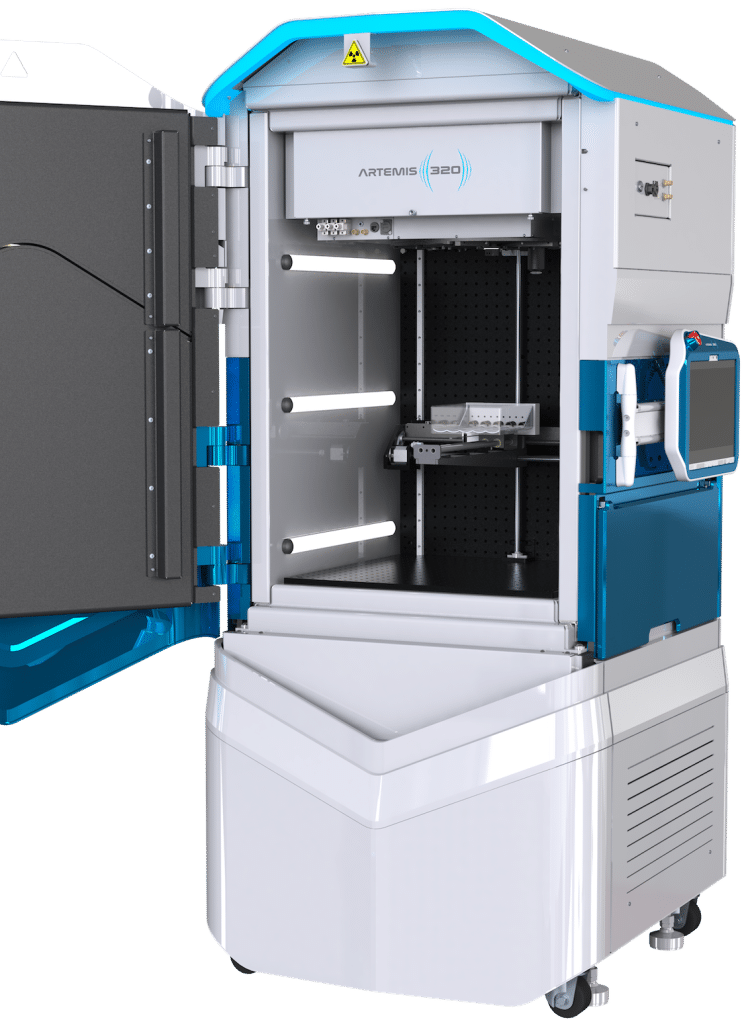

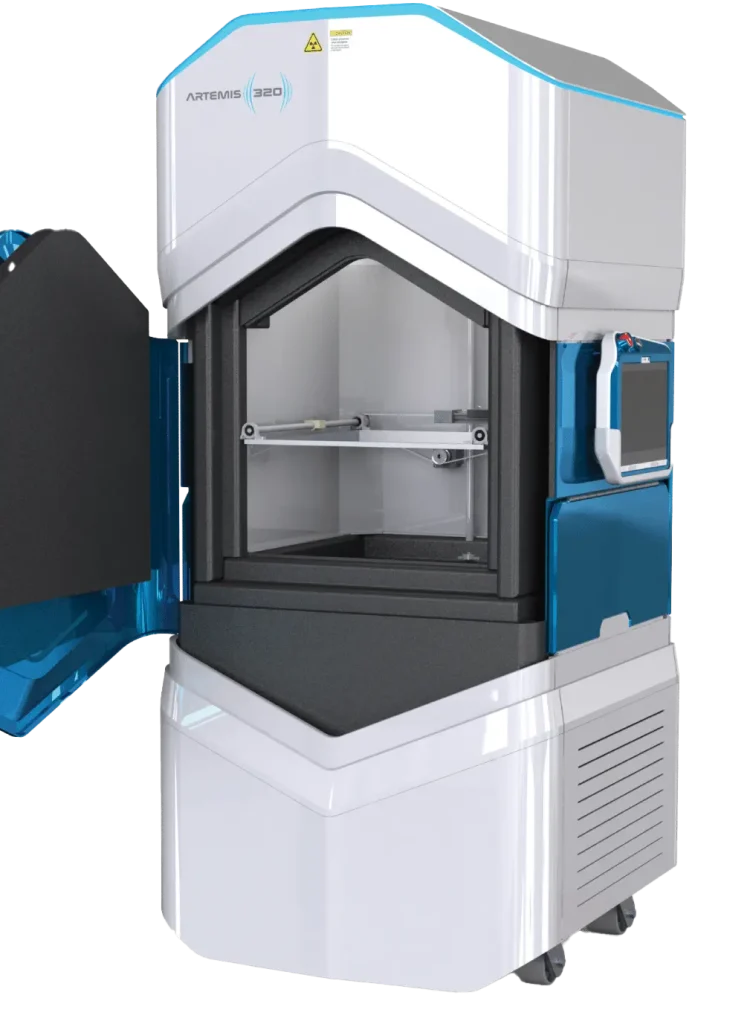

- 320 kV
- X-ray tube delivers a consistent, uniform dose
- 3 slot filter wheel equipped with standard filter set to accelerate beam transitions
- Collimator system adjusts to user-defined configurations for targeted beam shaping
- Bed options are available for high-throughput research, supporting large batch processing on platforms up to 45×65 centimeters
- High-resolution optical camera for detailed images
- Beam Eye View camera enhances field visualization through augmented reality guidance
- X-Y-Z stage for full control over subject positioning


Simplified X-ray irradiation with research-level sophistication

A simple experience that’s smart
Designed to be the simple, smart x-ray irradiator—keeping the focus on the research

Standardized dosimetry—that’s integrated
The integrity of radiation-based research depends on standardized dosimetry—giving users greater peace of mind

A wider range of research applications
Engineered to be as simple or sophisticated as needed— for outcomes every level of
researcher can count on

Support every step of the way
Backed by comprehensive quality assurance and maintenance programs—protecting users from lost experiments, lost funding, and lost time
Designed to exceed expectations
Fully automated and flexible: Recognizes and accepts custom-built collimators, filters, and beds

Reduce the risk of Cesium 137 (Cs-137) with CIRP
The Cesium Irradiator Replacement Project (CIRP) is a critical, government-backed reimbursement program designed to eliminate Cs-137 irradiators.

Reduce the risk of radiological terrorism by reprocessing
and decommissioning Cs-137 irradiators

Promote safer alternatives like X-ray irradiators to
maintain research and medical capabilities

Pay 50% of the new X-ray irradiator (base unit) cost; 100% of the maintenance costs (up to 5 year); and 100% for the removal of the
Cs-137 irradiator
Discover the financial incentives & logistical support available
Learn about CIRPFAQs
1. Do you have imaging?
Artemis implements a novel concept of optical imaging combined with augmented reality for x-ray field visualization. In combination with a unique fully programmable XYZ stage, optimum field of view and SSD/dose rates, optimal conformality, dose rate, and throughput can be achieved.
2. Do you have planning?
Beam-eye-view optical imaging is used for augmented reality images for field setup, allowing the user to create multiple regions of interest, with each region capable of receiving individual prescriptions of energy and dose rate, all executable within a single irradiation plan.
3. How do I know the irradiator is performing correctly before starting an experiment?
When the system is powered up, it will run through an automated diagnostic routine to identify any operational issues with the system. If any issues are detected, users will be notified on-screen with suggested actions. If no issues are detected, users will be taken to the start of the workflow to recall a stored plan/experiment or start a new one. During use, the system will continue to background monitor for errors and notify if detected.
4. How does Artemis ensure repeatable and reliable dose delivery?
Artemis integrates standardized dosimetry protocols directly into the system through a physics interface that will be accessible to staff with the appropriate login credentials. The QA and physics protocols were developed in collaboration with the ADCL and leading academic radiation physicists to provide full transparency in dose measurement and reporting, data reproducibility, and harmonization across institutions.
5. Can I verify and document system performance over time for regulatory or publication purposes?
Yes. Artemis includes OncoMatrix™, an AI-powered performance monitoring and predictive maintenance platform that actively trends and predicts potential system issues to optimize workflows and minimize unexpected downtime. All data is transparently available to the user for reporting, regulatory, and publishing purposes.
6. Am I eligible for government grants to replace my cesium irradiator?
Yes. The Department of Energy, through the Office of Radiological Security (ORS), implemented the Cesium Irradiator Replacement Project (CIRP) in 2014 to provide generous financial assistance for research sites to remove, purchase, and cover post-warranty support for up to 5 years to replace their Cesium irradiators with X-Ray technology. The program applies to all US sites and some international sites on a case-by-case basis. Please consult with Empyrean to discuss the process and contacts within the ORS.
Are you ready to drive breakthroughs with greater confidence?
Fill out the form below to learn how the ARTEMIS 320 can elevate your research. Request a demo today.
Looking for even more power?
Discover the ARTEMIS 500ARTEMIS 320 is a cell and small animal x-ray irradiator intended solely for use in pre-clinical research settings.
It is not intended for diagnostic or therapeutic use in humans or animals.
